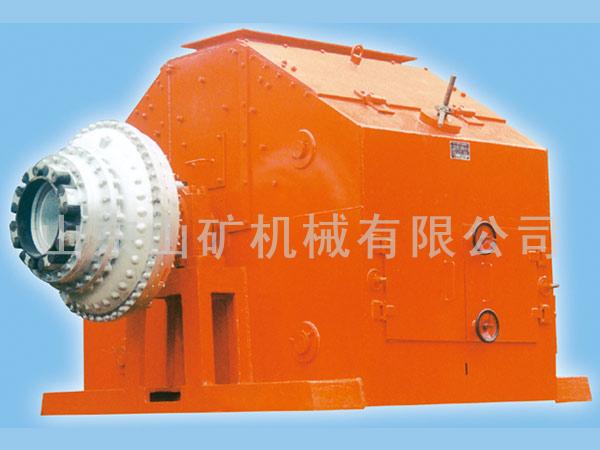

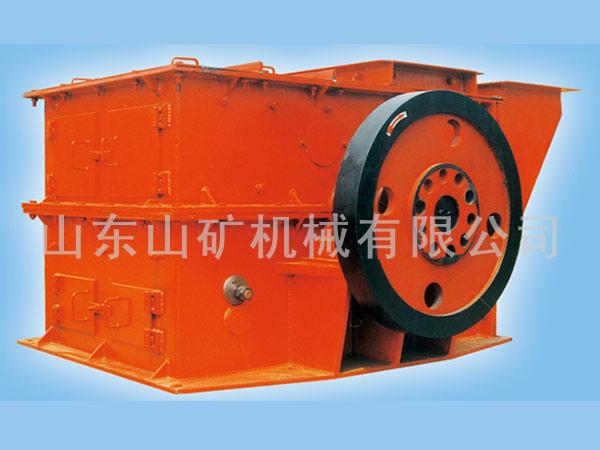

Ring hammer crusher

/

Ring hammer crusher

Ring hammer crusher

Ring hammer crusher

This Type of Crusher is suited for breaking all kinds of brittle material, with maximum anti-pressure strength no more than 100Mpa and surface moisture content within 15％, like coke coal, coal, shale, slag and loose limestone etc,. It is widely used in the fields of building material, metallurgy, chemistry, coal mines, having good features of large breaking ratio, capacity and even grain size.

Hotline：+86-537-2228209

Ring hammer crusher

Ring hammer crusher

Product description

This Type of Crusher is suited for breaking all kinds of brittle material, with maximum anti-pressure strength no more than 100Mpa and surface moisture content within 15％, like coke coal, coal, shale, slag and loose limestone etc,. It is widely used in the fields of building material, metallurgy, chemistry, coal mines, having good features of large breaking ratio, capacity and even grain size.

The crusher is mainly composed of rotor part, machine body and adjusting mechanism etc. The rotor is directly driven by motor via fluid coupling. The rotor part mainly includes main shaft, end disk, hammer disk, hammer bar, and ring hammer etc. Ring hammer is suspended on the hammer bar, and hammer bar is installed on the end disk and hammer disk, end disk and hammer disk are fixed on the main shaft with flat key and round nut.

The machine body mainly includes upper and lower body shells, breaking plate, bar screen, support for bar screen, lining plate etc. Breaking plate and bar screen are installed on the support for bar screen, and one end of support for bar screen is suspended on the bearing housing at two sides of upper body shell with a shaft, while the other end is connected to adjusting mechanism with a joint plate. Lining plates are installed on the internal wall at two sides of body shells to protect shell from being frayed.

When working, once material entering into crusher, firstly, the material is broken under impact force with high-speed rotating beater, and then, with kinetic energy from beater, the material is thrown to the breaking plate at a high speed, and so second breaking is obtained. After then, final material is discharged out of crusher through opening of bar screen, while material which cannot be broken will enter into metal collector and shall be removed regularly.

Final grain size can be adjusted by changing screen plate with different opening. Generally, the final grain size of bar screen is 30mm, any special requirements about grain size or whether pass-by hopper needed should be noted when ordering.

Specifications:

Type	Rotor diamete×length mm	Rotor Rotational speed r/min	Max. Feeding grain size mm)	Discharge Grain size mm		Capacity t/h	Motor		Weight（excluding motor） kg	Dimensions L×W×H mm
							Type	Power kw
PCH-0402	400×200	960	200	3-60		8-12	Y132m2-6	5.5	800	810×890×560
PCH-0404	400×400	970				16-25	Y160L-6	11	1050	980×890×570
PCH-0604	600×400					22-33	Y180L-6	15	1430	1050×1270×800
PCH-0606	600×600	980				30-60	Y225M-6	30	1770	1350×1270×820
PCH-0808	800×800	740		30		75-105	Y280M-8	45	3600	2850×1650×1200
PCH-0808A	800×800	740		10	20	40-150	Y280M-8	45	4100
				30	40
PCH-1010	1000×1000	740	300	30		130-200	Y315M2-8	90	6100	3500×2000×1500
				10		65-100	Y315M3-8	110
PCH-1016	1000×1600	741		30		90-350	JS128-8	155	8560
							Y400-8	220
